tidyMacro

tidyMacro is an R package for fast estimation of Vector Autoregression (VAR) models via C++ (Rcpp/RcppArmadillo). Here is what it does: (will be updated as I extend functionality of the package).

  • Fast VAR & VARX reduced form estimations
  • Zero dependency on other packages. Ground up written in C++. All visualizations made with ggplot2 in R.
  • Identification via external instruments (most popular) and classical recursive methods
  • Impulse Response Functions with bootstrap confidence bands (moving blocks, residual, wild)
  • Bias-corrected bootstraps (Pope correction)
  • Forecast Error Variance Decomposition (FEVD)
  • Historical Decomposition
  • Publication-ready plots out of the box. Each plot is a #ggplot2 object, can be ex post customized
  • Parallel bootstrap computations via #OpenMP for maximum speed
  • Excellent documentation with detailed examples for every function

Installation

# Install from GitHub
devtools::install_github("muhsinciftci/tidyMacro")

Usage

Replication 1: @känzig2021 — Oil Supply News Shocks via External Instruments

library(tidyMacro)
library(tidyverse)
#> ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
#> ✔ dplyr     1.2.0     ✔ readr     2.1.5
#> ✔ forcats   1.0.0     ✔ stringr   1.6.0
#> ✔ ggplot2   4.0.2     ✔ tibble    3.3.1
#> ✔ lubridate 1.9.4     ✔ tidyr     1.3.2
#> ✔ purrr     1.2.1
#> ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
#> ✖ dplyr::filter() masks stats::filter()
#> ✖ dplyr::lag()    masks stats::lag()
#> ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(tictoc)
library(patchwork)

set_tidyMacro_theme()
#> tidyMacro theme and color scales set as default for this session.

# Load data
data("kaenzig_data")
kaenzig_data |> head()
#> # A tibble: 6 × 8
#>   date                Oil_Price World_Oil_Prod World_Oil_Inven World_IP US_IP
#>   <dttm>                  <dbl>          <dbl>           <dbl>    <dbl> <dbl>
#> 1 1974-01-01 00:00:00      307.          1092.            628.     379.  385.
#> 2 1974-02-01 00:00:00      306.          1093.            632.     378.  385.
#> 3 1974-03-01 00:00:00      305.          1094.            631.     378.  385.
#> 4 1974-04-01 00:00:00      305.          1095.            634.     378.  385.
#> 5 1974-05-01 00:00:00      304.          1096.            638.     379.  385.
#> 6 1974-06-01 00:00:00      303.          1095.            640.     378.  385.
#> # ℹ 2 more variables: US_CPI <dbl>, iv_kanzig_final <dbl>
# Pass data as matrix
finaldata <- kaenzig_data |>
  select(Oil_Price, World_Oil_Prod, World_Oil_Inven, World_IP, US_IP, US_CPI) |>
  as.matrix()

iv_oil <- kaenzig_data |>
  select(iv_kanzig_final) |>
  drop_na() |>
  as.matrix()

varnames <- c(
  "Oil Price",
  "World Oil Prod.",
  "World Oil Inven.",
  "World IP",
  "US IP",
  "US CPI"
)

shockname <- "Oil Shock"

# Estimate VAR
T <- nrow(finaldata)
N <- ncol(finaldata)
c <- 1
p <- 12

var_result <- fVAR(finaldata, p, c)
residuals <- var_result$residuals
sigma_full <- var_result$sigma_full

# Wold IRFs
hor <- 48
wold <- fwoldIRF(fVAR = var_result, horizon = hor)

# I use 100 bootstraps here for replications but you should use 1000 or so
nboots <- 100

# Moving block bootstrap
result_mbb <- fbootstrapIV_mbb(
  y = finaldata,
  var_result = var_result,
  Z = iv_oil,
  nboot = nboots,
  blocksize = 0, # 0 means Automatic selection
  adjustZ = c(1, 417),
  adjustu = c(100, 516),
  policyvar = 1,
  horizon = hor,
  prc = 90
)
#> Using 3 thread(s) for parallel bootstrap computation...

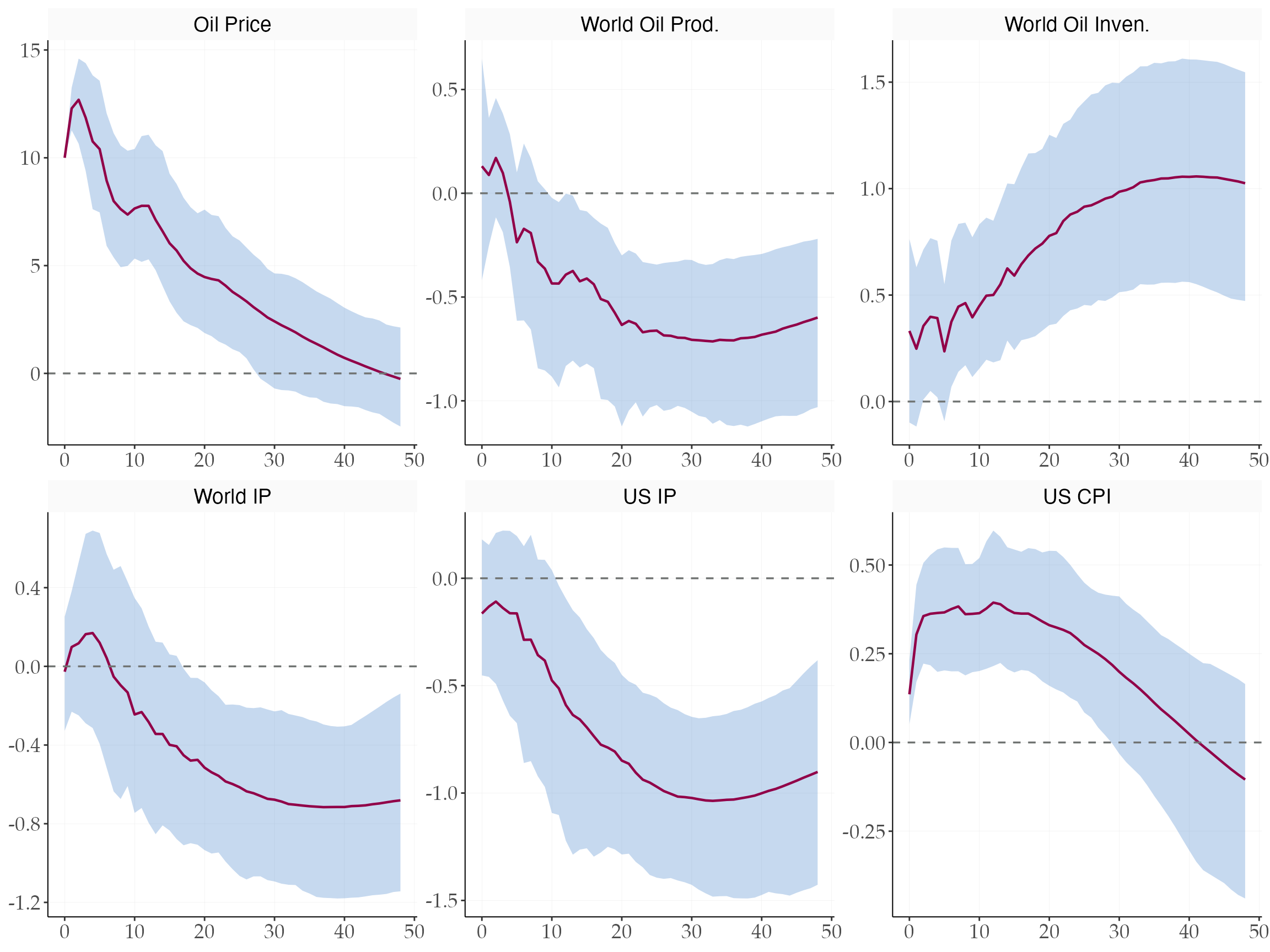

# Plot IRFs
fplotirf_iv(
  point = result_mbb$meanirf * 10,
  upper = result_mbb$upper * 10,
  lower = result_mbb$lower * 10,
  varnames = varnames,
  shockname = shockname,
  prc = 90,
  facet_ncol = 3
) +
  labs(x = NULL, y = NULL)

The package calculates many intermediate steps. However, One can manually calculate IV steps as in the original paper:

# IV identification
u_p <- residuals[, 1]
u_p_final <- u_p[(length(u_p) - length(iv_oil) + 1):length(u_p)] |> as.matrix()
u_q_final <- residuals[
  (nrow(residuals) - length(iv_oil) + 1):nrow(residuals),
  2:ncol(residuals)
] |>
  as.matrix()

u <- residuals[(nrow(residuals) - length(iv_oil) + 1):nrow(residuals), ]
T1 <- nrow(u)
sigma <- (t(u) %*% u) / (T1 - 1 - p - N * p)
S <- t(chol(sigma))

ols_result1 <- fOLS(y = u_p_final, X = iv_oil, 0)
uhat <- ols_result1$fitted_partial
sq_sp <- solve(t(uhat) %*% uhat) %*% t(uhat) %*% u_q_final

s <- c(1, sq_sp[1], sq_sp[2], sq_sp[3], sq_sp[4], sq_sp[5])

# Structural IRFs
ivirf <- matrix(0, nrow = N, ncol = hor + 1)
for (h in 1:(hor + 1)) {
  ivirf[, h] <- wold[,, h] %*% s
}

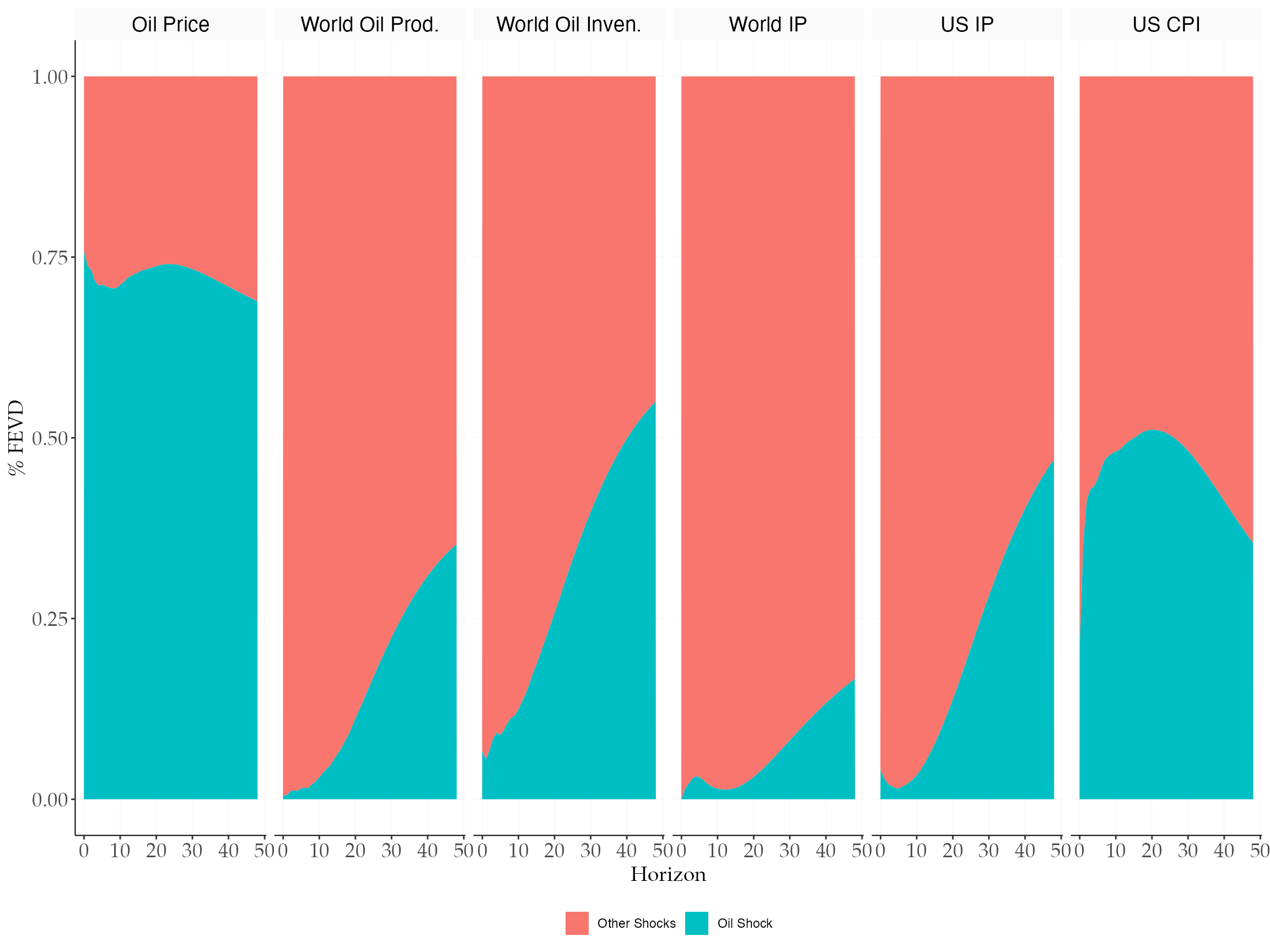

FEVD

# FEVD
fevd_result <- fevd_iv(s, S, wold, N, hor, sigma, u, T1 = T1, p = p)

fplot_vardec(
  fevd = fevd_result$fevd_iv,
  varnames = varnames,
  shocknames = shockname
)

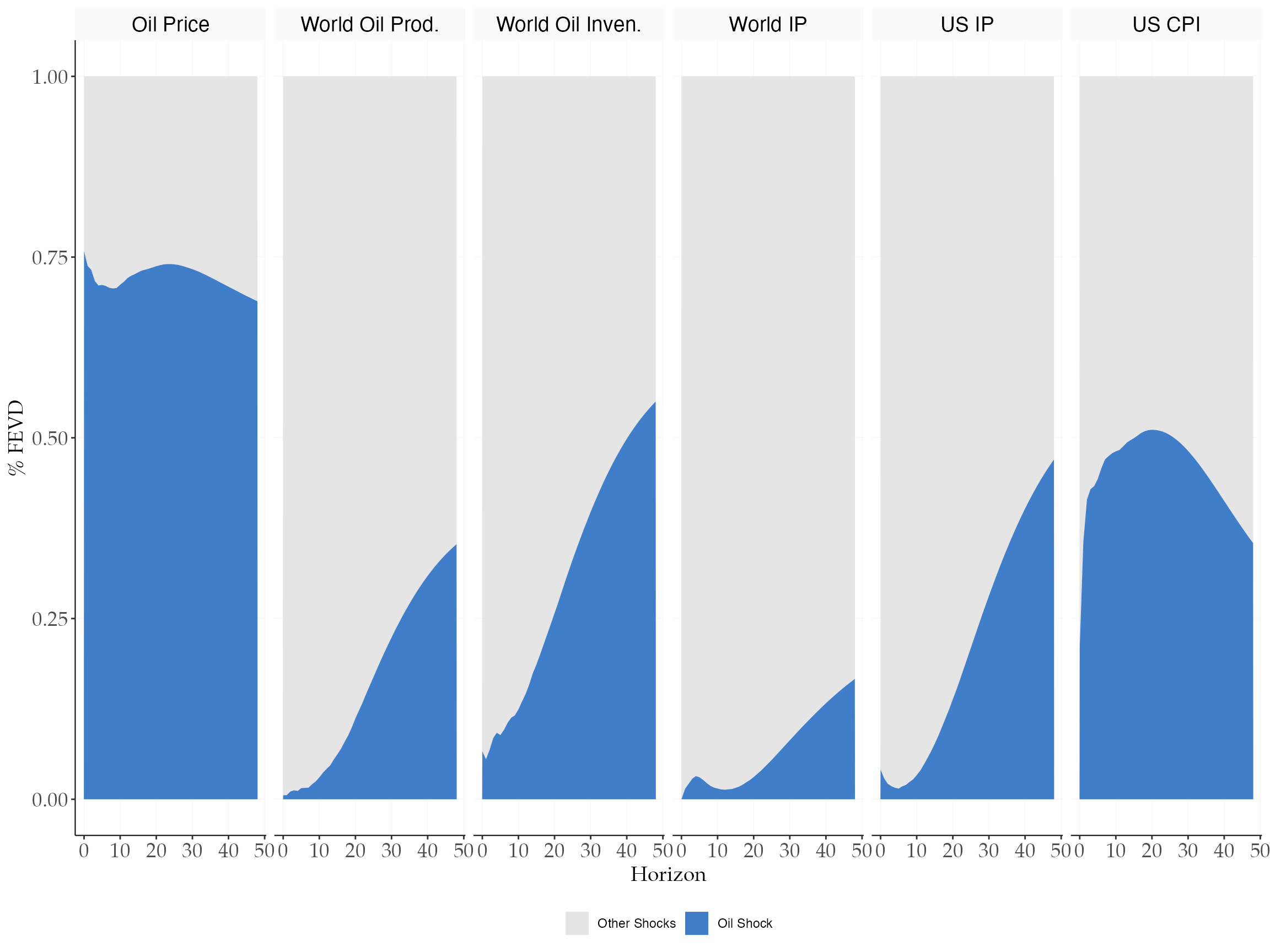

Again the same:

# FEVD scaled to unit variance (Känzig approach)
scaler <- s / norm(solve(S) %*% s, type = "2")
ivirf_scaled <- matrix(0, nrow = N, ncol = hor + 1)
for (h in 1:(hor + 1)) {
  ivirf_scaled[, h] <- wold[,, h] %*% scaler
}

temp <- matrix(0, nrow = N, ncol = N)
denom <- matrix(0, nrow = N, ncol = hor + 1)
for (h in 1:(hor + 1)) {
  temp <- temp + wold[,, h] %*% sigma %*% t(wold[,, h])
  denom[, h] <- diag(temp)
}

irf_sq <- ivirf_scaled^2
num <- t(apply(irf_sq, 1, cumsum))
fevd_iv <- num / denom

fplot_vardec(
  fevd = fevd_iv,
  varnames = varnames,
  shocknames = shockname
) +
  scale_fill_manual(values = tidyMacro_colors[c(2, 3)])

Replication 2: Bloom (2009) — Uncertainty Shocks via Cholesky Ordering

library(tidyMacro)
library(tidyverse)

# Load data
data("bloom2009")
df0 <- bloom2009

dates_vec <- df0 |> pull(Date)
y <- df0 |> select(-Date) |> as.matrix()

# Estimate VAR
p <- 12
c <- 1
var_bloom <- fVAR(y, p, c)

sigma <- var_bloom$sigma_full
S <- t(chol(sigma))

horizon <- 48
wold <- fwoldIRF(fVAR = var_bloom, horizon = horizon)
point_irf <- fcholeskyIRF(wold, S)

# Bootstrap confidence bands
prc <- 68

bloom_chol <- fbootstrapChol(
  y = y,
  var_result = var_bloom,
  nboot = nboots,
  horizon = 48,
  prc = 90,
  bootscheme = "residual"
)

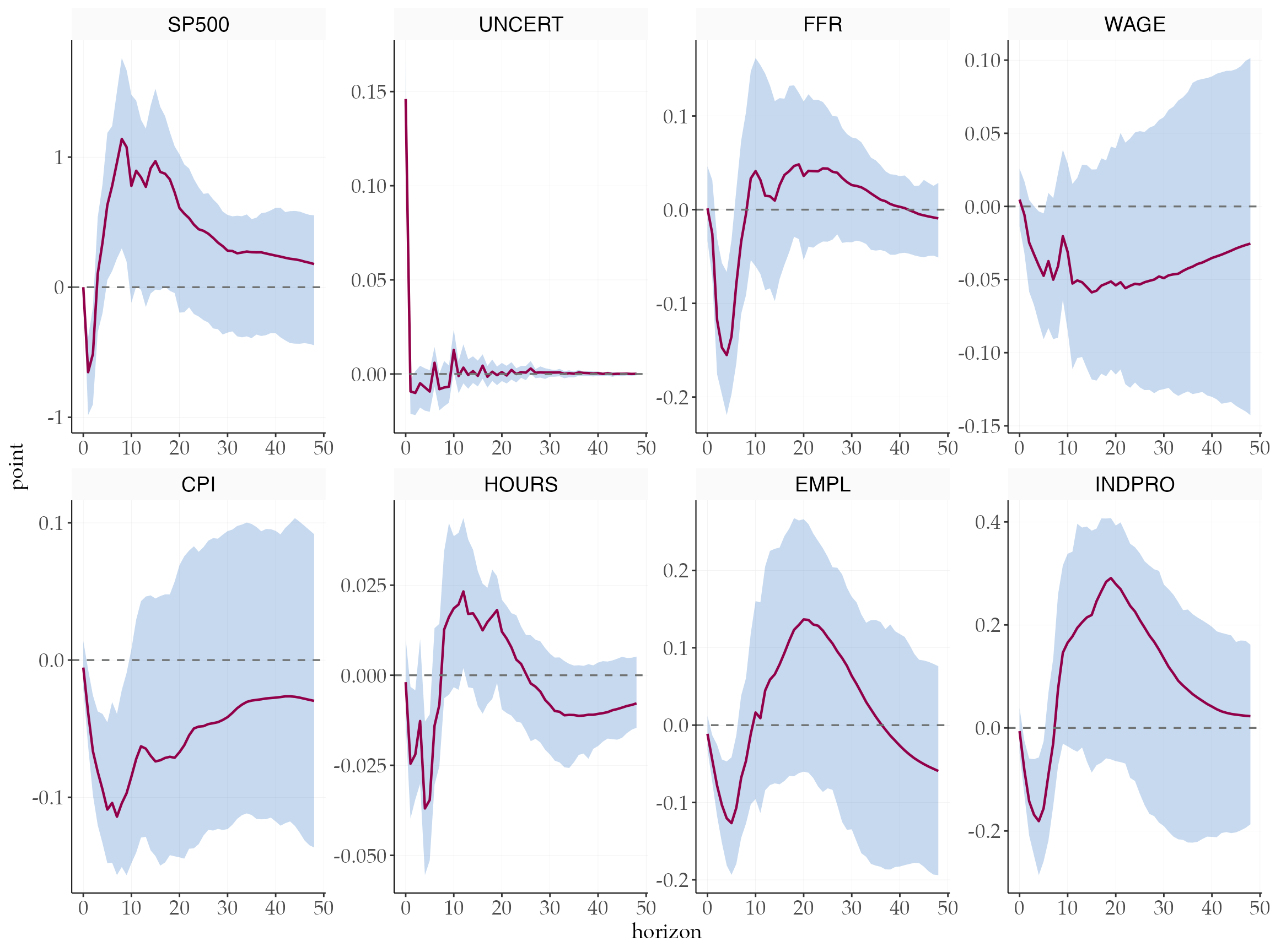

Impulse responses

# Plot IRF
shockname <- "UNCERT"
var_names <- colnames(y)
shock <- match(shockname, var_names)

fplotirf_chol(
  point_irf,
  bloom_chol$upper,
  bloom_chol$lower,
  shock = shock,
  varnames = var_names,
  prc = 68,
  facet_ncol = 4
) +
  ftheme_tidyMacro()

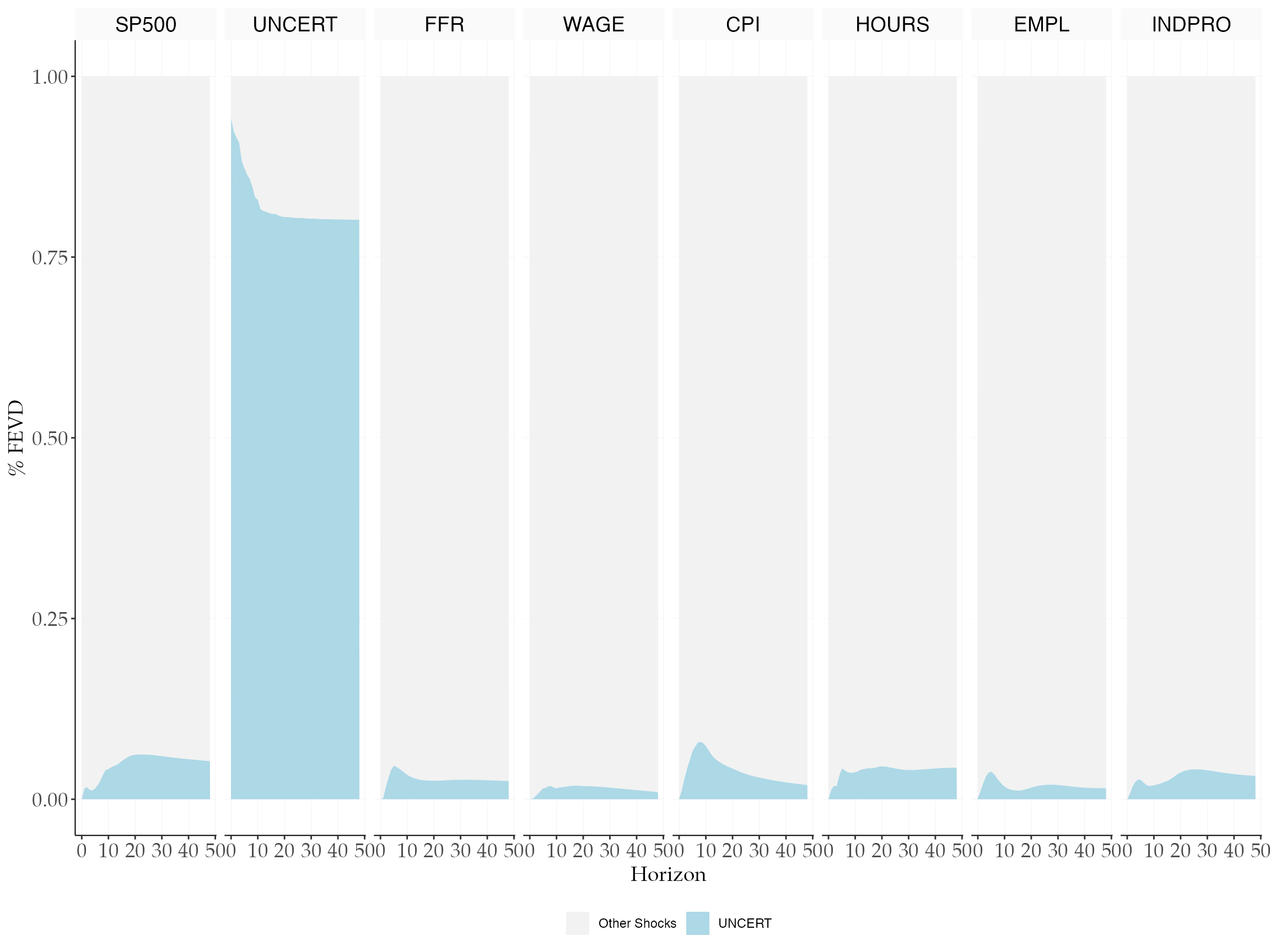

FEVD

# FEVD
vardec <- fevd_chol(point_irf, shock = shock)

fplot_vardec(
  fevd = vardec$fevd,
  varnames = var_names,
  shocknames = var_names[shock]
) +
  ftheme_tidyMacro() +
  scale_fill_manual(values = c("gray95", "lightblue"))

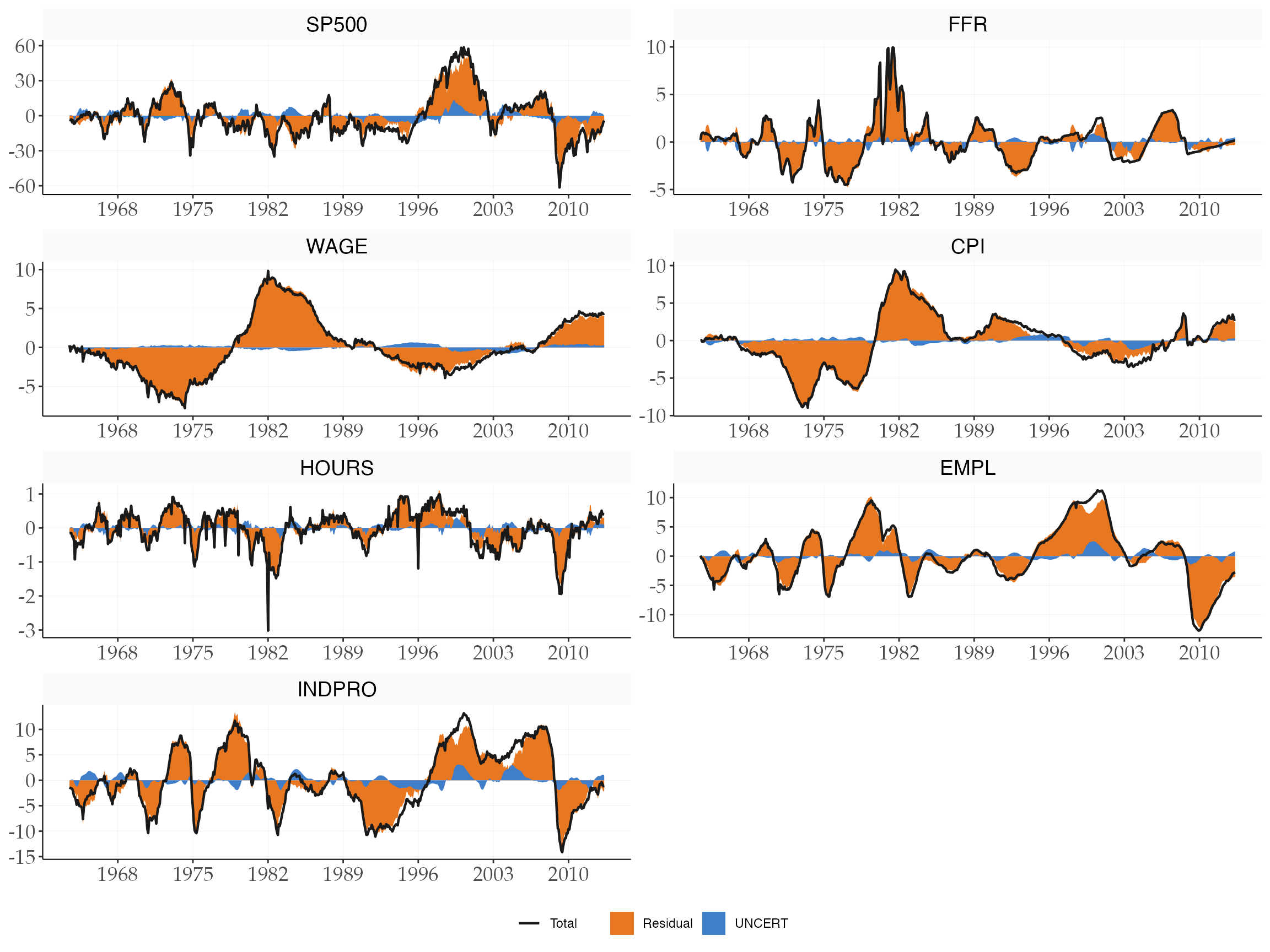

Historical Decomposition

series <- setdiff(seq_len(ncol(y)), shock)

histdec_list <- setNames(
  lapply(series, function(i) fhistdec(y, var_bloom, S, i)$histdec),
  colnames(y)[series]
)

fplot_histdec(
  histdec_list = histdec_list,
  shock = shock,
  shockname = shockname,
  dates = dates_vec,
  p = p,
  facet_ncol = 2,
  return_data = FALSE
) +
  scale_x_datetime(date_breaks = "7 years", date_labels = "%Y") +
  ftheme_tidyMacro()

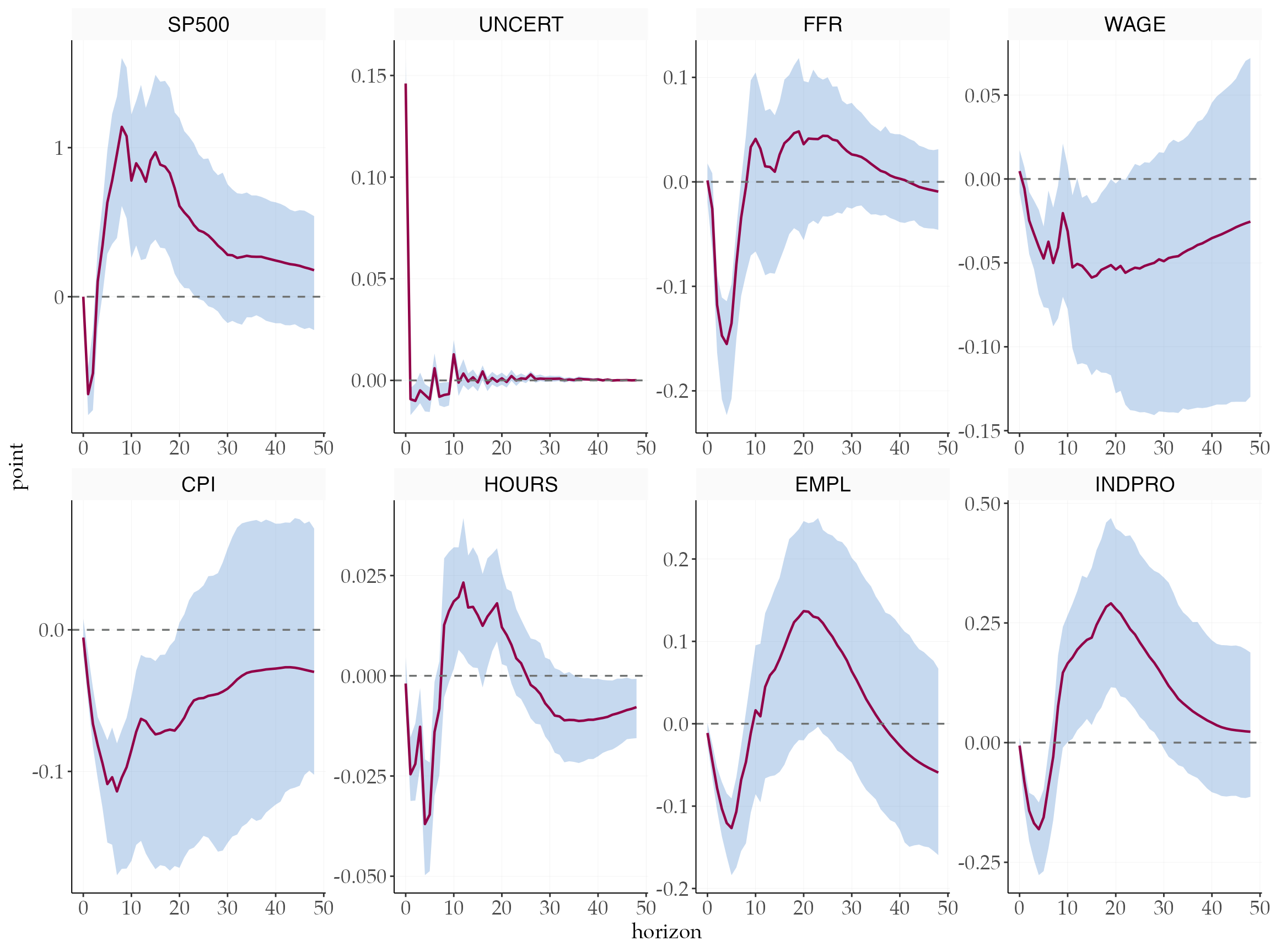

Bias Corrected Impulse responses

# Bias-corrected Bootstrap
nboot1 <- 1000
nboot2 <- 2000

tic()
result_corrected <- fbootstrapCholCorrected(
  y = y,
  var_result = var_bloom,
  nboot1 = nboots,
  nboot2 = nboots,
  horizon = 48,
  prc = prc,
  bootscheme = "residual"
)
toc()
#> 3.995 sec elapsed

fplotirf_chol(
  point_irf,
  result_corrected$upper,
  result_corrected$lower,
  shock = shock,
  varnames = var_names,
  prc = prc,
  facet_ncol = 4
) +
  ftheme_tidyMacro()
